MPO Housing Kit

MT Ferrule specialized manufacturer recommended kit

MPO Housing Kit
MPO Housing Kit
MPO Housing Kit
MPO Housing Kit
MPO Housing Kit

FEATURES

  • Passed 500 connection tests using Hakusan MT Ferrule
  • Operating environment: -40℃～75℃
  • Compatible with other brands
    (Compatibility tested with global brands)

APPLICATION

  • IEC 61754-7 compliant
  • TIA/EIA 604-5 compliant
  • Telcordia GR-1435-CORE compliant

SPECIFICATIONS

Brand

MPO
Fiber Type

Single-mode/Multimode
Grade

Depends on the grade of MT Ferrule and guide pin (SM/MM Standard & Low Loss)
Type

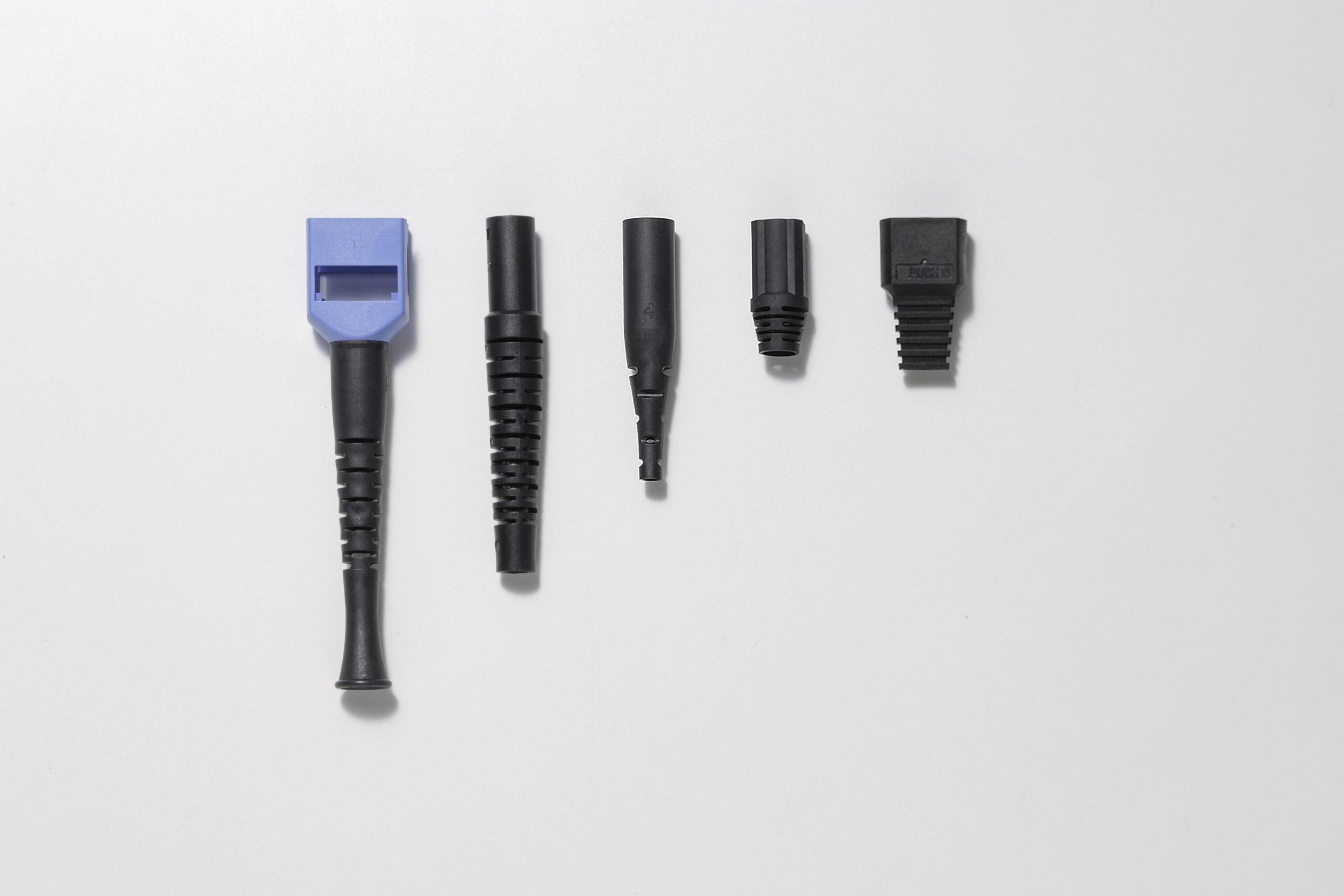

Boots Round Cable/Bare Ribbon/Oval/Short/Flexible/Push-Pull
Compatible cable diameter 2.0/3.0/3.2/3.5/3.8mm
Fiber Count

12/16/24/32F
Remarks
  • The standard color of the boots is black, but green, blue, and white are available as options.
  • Guide pins are included in the kit, but MT Ferrule are available separately.
