MMC connector
Next-generation VSFF (Very Small Form Factor) multifiber optical connector developed by US Conec

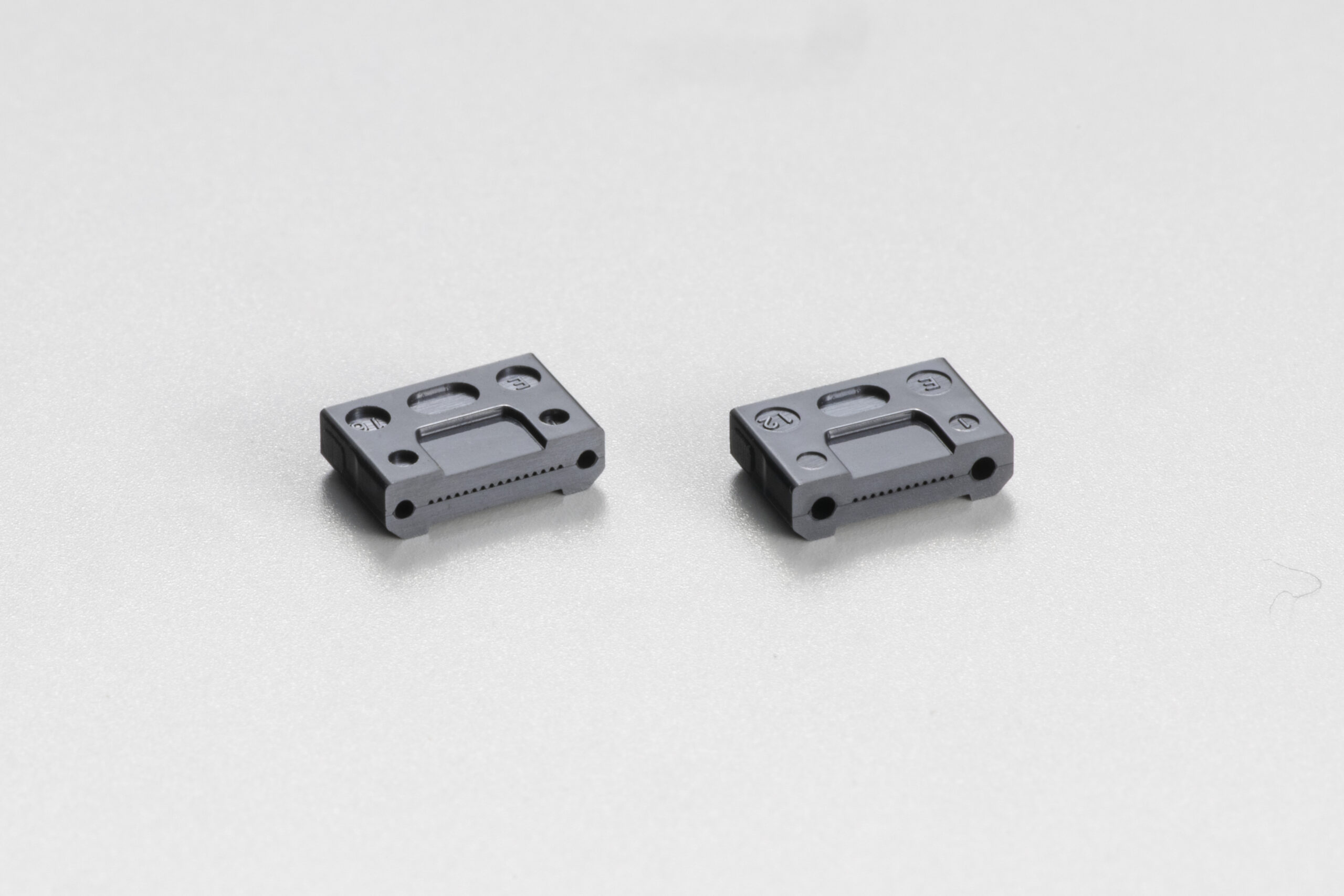

We offer a connection solution combining Hakusan TMT Ferrule and Sanwa Technologies MMC connectors.
-
FEATURES
-
- Achieves approximately three times higher density optical connectivity compared to MPO connectors.
- Excellent insertion and removal with DirectConec™ push-pull boots.
- High-precision injection molding and quality control technology cultivated through MT Ferrule
- Confirmed compatibility with US Conec TMT Ferrule.
- Products based on US Conec licenses
- Provided as a set with Sanwa Technologies' MMC housing kit.
-
APPLICATION
-
- Data Center Interconnection (DCI)
- High-density Optical Interconnect system
- CPO（Co-Packaged Optics）
- Onboard optical connection
- Structured Optical Interconnect within the building
- Optical transceiver
-
SPECIFICATIONS
-
Brand MMC
Grade Single-Mode Elite
Fiber Count 1×12, 1×16 (Samples available)
2x12, 2x16 (under development)
Connector Type MMC (Sr.) / MMC Mini / MMC Jr. (in preparation)
Housing Color Green
Boot Type 28mm / 44mm (in preparation)
Cable Diameter / Crimp Style 2.0mm / Jacket Crimp
