Optical Communication

Top / Products/Solutions / Optical Communication
Image of the optical communication field

​
With the No.2 market share position in the world with high-quality manufacturing of MT ferrules.
Aiming to be the world's No. 1 optical connector components.

For more than 20 years, we have been developing and manufacturing MT Ferrule for Multifiber optical connector parts. We have achieved mass production of high-quality products that cannot be imitated by other companies with high-precision injection molding that we have continued to refine. Produces more than 1 million pieces per month, and is currently No.2 in the world.
Products of Hakusan Inc. are used all over the world. Recently, we have successfully developed a compact MT Ferrule for high-density mounting of optical devices.
We aim to be No. 1 in the world by developing products ahead of other companies in line with the evolution of optical connectors and optical devices accompanying the development of optical communications.

PRODUCT 01

MT Ferrule

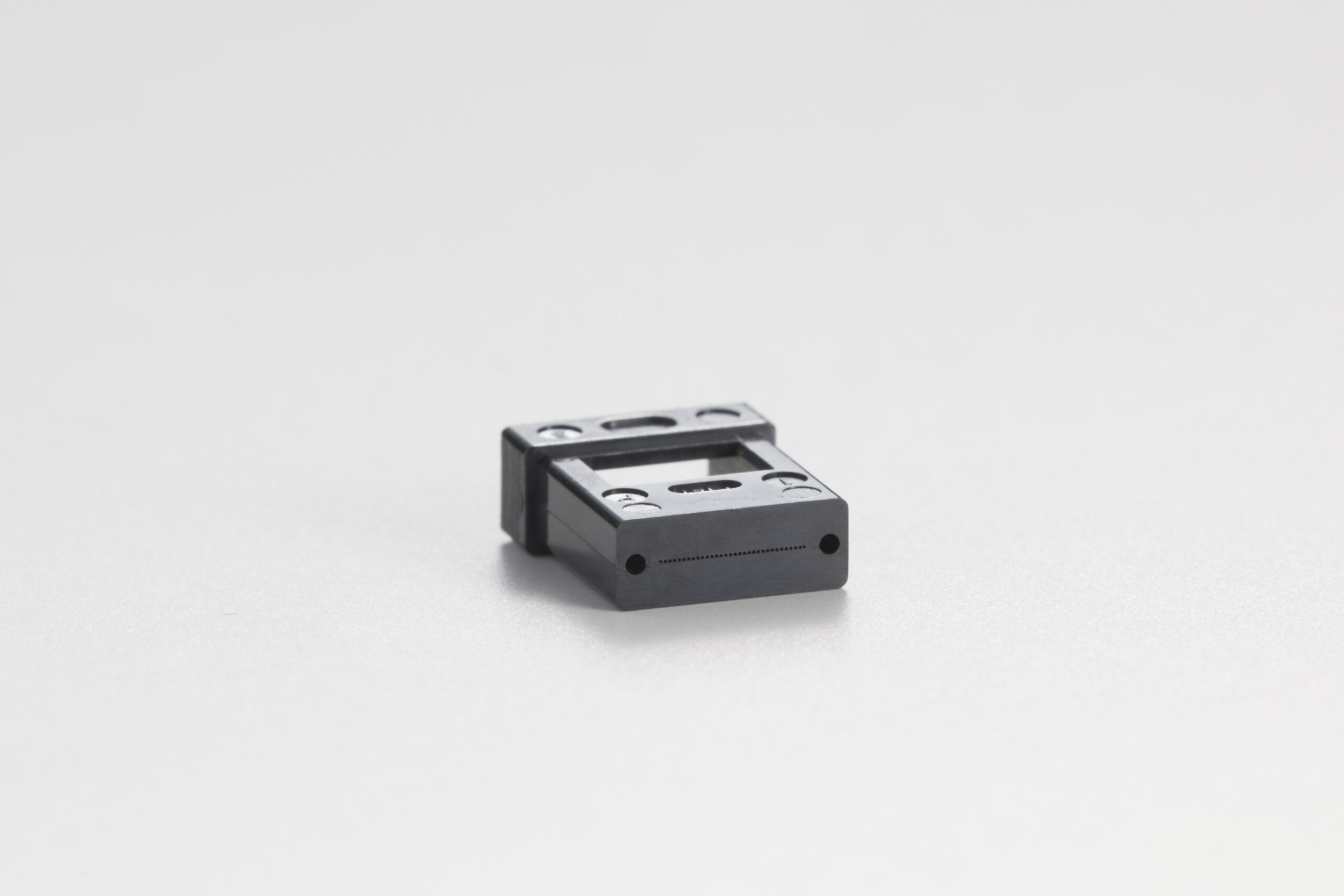

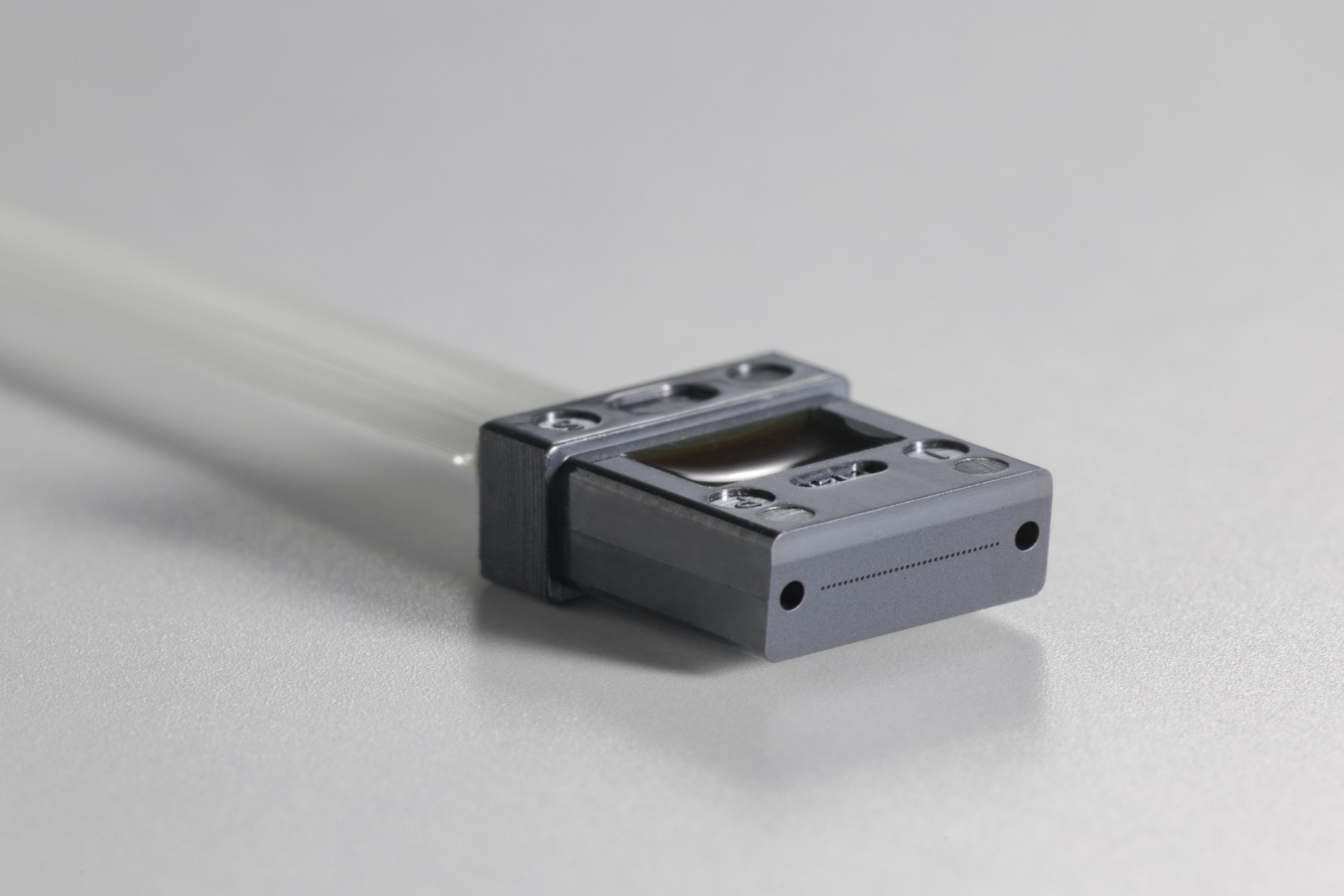

  • Image of MT Ferrule
FEATURES
  1. Supports both Single-mode and Multimode
  2. Supports a wide range of optical fiber cores (12-Fiber / 16-Fiber / 24-Fiber / 32-Fiber / 36-Fiber / 48-Fiber)
  3. Grades can be selected according to the application (ultra-low loss/low loss/standard)
  4. Stable quality through high-precision injection molding
  5. Optimal peripheral materials that match ferrules (guide pins, etc.) feasible
MERIT
  • Realization of stable optical connection is possible
  • Can be mounted on various optical connector/optical transceiver manufacturer products
  • Possible to propose complete designs combined with peripheral materials
PRODUCT 02

MTCOMPACT ​

  • Image of MTCOMPACT ® Slim
FEATURES
  1. Half the thickness of the standard product (1.25 mm)
  2. Multimode compatible (Single-mode is under development)
  3. It is also possible to supply a dedicated metal pin clamp.
MERIT
  • Allows more than twice as much wiring as MT Ferrule
  • Ideal for space-saving designs (in the height direction) in optical devices
PRODUCT 03

MTCOMPACT ​

  • Image of MTCOMPACT ® Short
FEATURES
  1. Half length of standard product (4.0 mm)
  2. Supports Single-mode / Multimode
  3. Dedicated guide pins/clips can also be supplied.
  4. Supports optical transceivers and MPO adapters for front panels
MERIT
  • Ideal for space-saving designs (longitudinal direction) in optical devices
  • Compatible with standard MPO connectors
PRODUCT 04

MTCOMPACT Slim Short

  • Image of MTCOMPACT ® Slim & Short
FEATURES
  1. 1/4 the size of the standard product (length 4.0 mm / thickness 1.25 mm)
  2. Supports Single-mode / Multimode
  3. Dedicated guide pins/clips can also be supplied.
  4. Dedicated connector housing under development
MERIT
  • Ideal for space-saving designs in optical devices
  • Contributes to miniaturization of optical connection structures
  • Contributes to alleviating the density of optical connectors on the front panel, etc.
PRODUCT 05

Special MT Ferrule

  • Image of special MT Ferrule
FEATURES
  1. Can be connected to optical waveguides and special optical fibers
  2. Optical fiber hole pitch can be selected (125 µm or 250 µm)
  3. In addition, we can also consult about custom production according to your request.
MERIT
  • Contributes to alleviating wiring density in optical devices
  • Compatible with standard optical fiber connections
