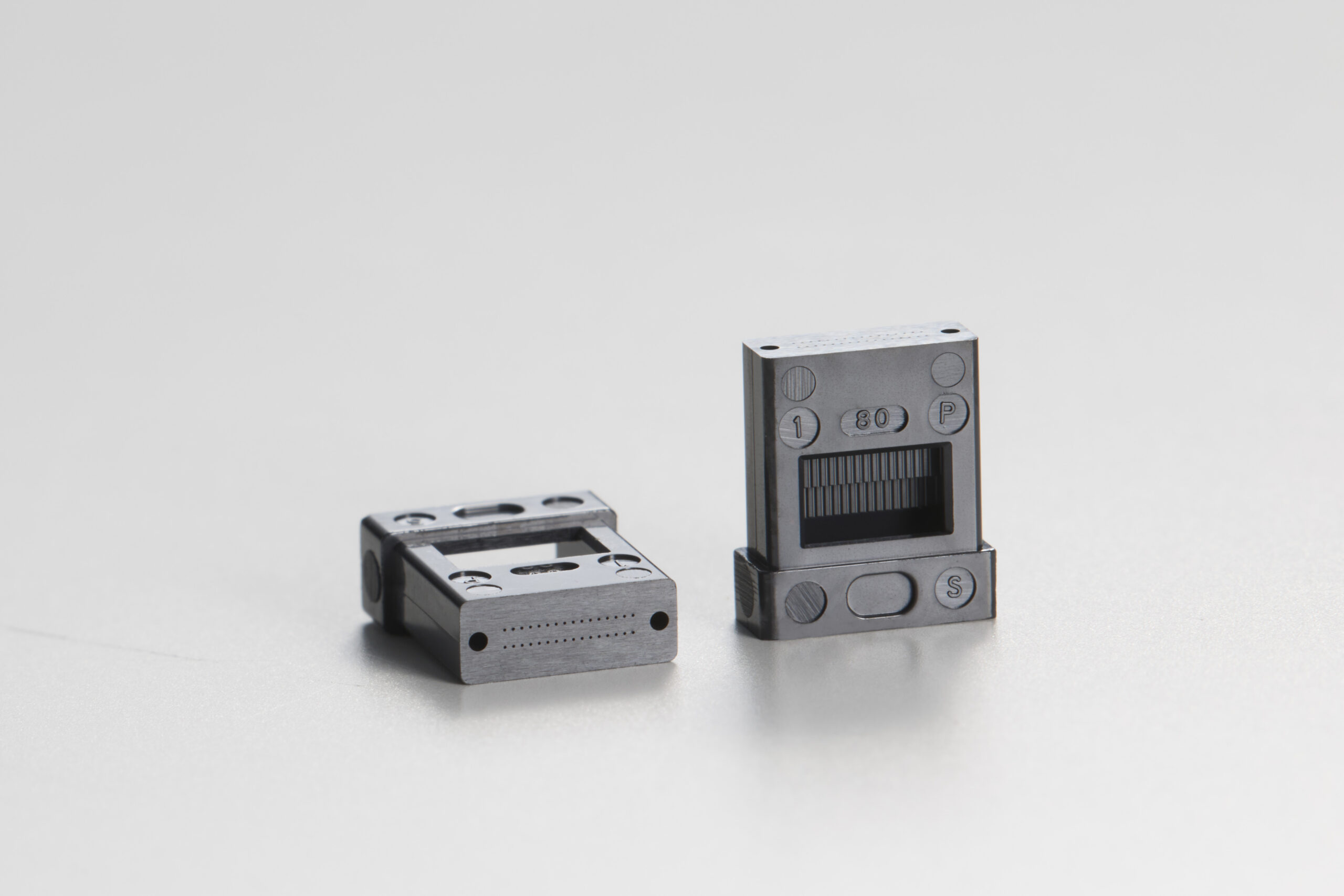

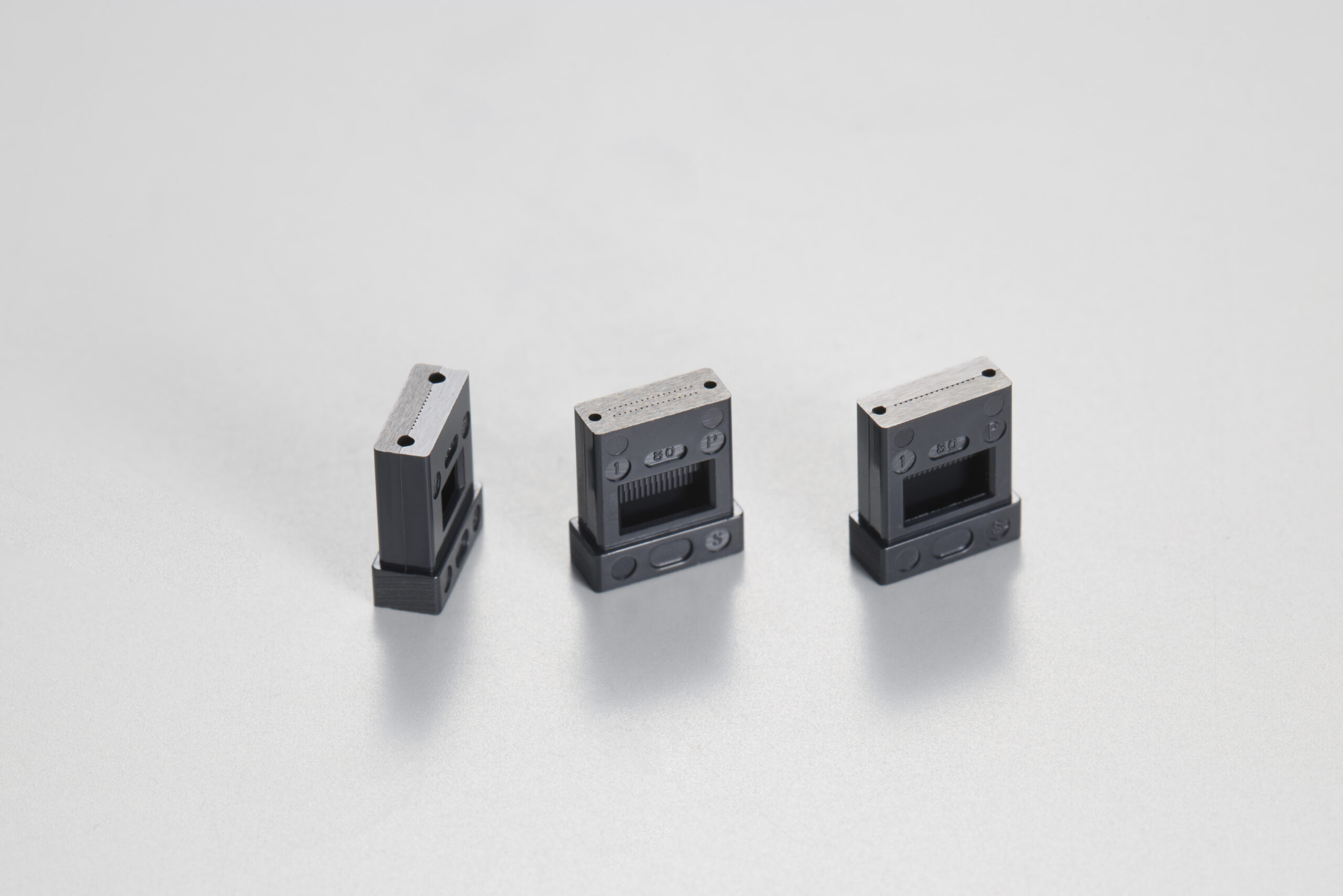

reduced cladding 80µm Ideal for optical fiber connection
-
FEATURES
-
- reduced cladding clad φ80 µm compatible
- 250 µm fiber pitch (compatible with standard 125 µm cladding diameter MT Ferrule)
- Compatible with general-purpose guide pin diameters/pitch
- Multimode / Single-mode compatible
*Developed product
-
APPLICATION
-
- Co-Packaged Optics (CPO)
- On Board Optics (OBO)
-
SPECIFICATIONS
-
Brand MT-80µm
Fiber Type Single-Mode
Grade Super Low Loss <0.35dB Fiber Count 1×12-16
Endface Type Flat
Polish Type APC
Fiber Cladding Size 80µm
Fiber Pitch 250µm
Remarks - Insertion Loss is based on random connection (all channels 97% or more). *IEC61755-1.
- The flat end face shape of MT Ferrule can be polished without any problems using a regular 8° polishing jig.
*If the table cannot be displayed in its entirety, please scroll horizontally to view it.
-
