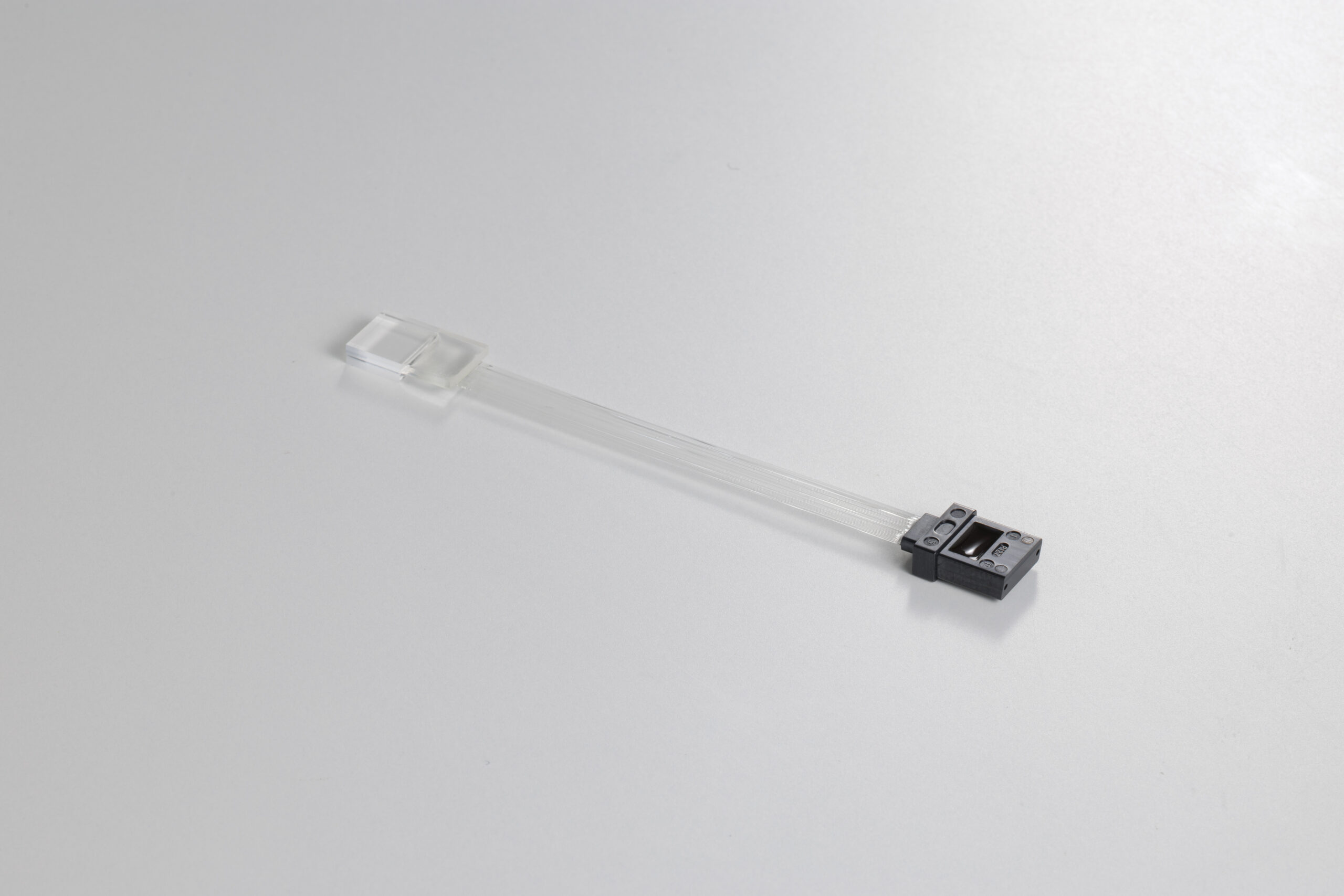

Narrow-Pitch MT Ferrule (MTDS®)
Realization of one-dimensional, high-density optical connections with narrow pitch
-
FEATURES
-
- reduced cladding clad φ80 µm compatible
- 125/127 µm fiber pitch
- Supports 24-Fiber / 32-Fiber 1 row
- Compatible with general-purpose guide pin diameters/pitch
- Multimode / Single-mode compatible
*Developed product
-
APPLICATION
-
- Backplane
-
SPECIFICATIONS
-
Brand MTDS®
Fiber Type Single-mode(32F)/Multi-Mode(24F)
Grade Standard Loss <0.70dB(SM)/<0.50(MM) Fiber Count 1×24-32
Endface Type Flat
Polish Type PC and APC
Fiber Cladding Size 80µm
Fiber Pitch 125/127µm
Remarks - The flat end face shape of MT Ferrule can be polished without any problems using a regular 8° polishing jig.
*If the table cannot be displayed in its entirety, please scroll horizontally to view it.
-
